> GPS & accessories> GPS Antenna> GPS Antenna with MMCX MALE JACK antenna connector for Navman GlobalSat BC-307

20X GAE0MMCXSTR MMCX Antenna for Garmin GPS

20X GAE0MMCXSTR MMCX Antenna for Garmin GPS
click to see larger image
Name: 20X GAE0MMCXSTR MMCX Antenna for Garmin GPS
Your Price:
$260.00


Add product to your shopping cart



Offered here is  20 PIECES  new aftermarket Remote Amplified Antenna for All GPS with MMCX MALE JACK 90degree angled plug connector for easy maneuvering

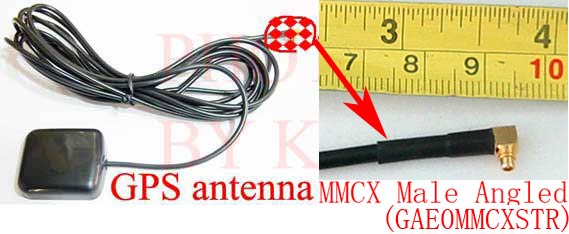

Picture 1: What you see above is what you get.

If you prefer a straight plug, then click on this icon:

Our MMCX antenna

is compatible with:



Acer N35 Navigations PDA
Acore AG-600 GPS
Airis PDA 509
ALDI Medion MD 95000, MD95900 = MDPPC 150
AKTRONIX BT
Blue Media Pocket PC 255, Blue Media Navigation System 6300/ Penny Navigation PNA BM 6300,
BT Empfnger BT-R500, BR-R700, CF Empfnger ST-K500, ST-BTS 110, STBT110, ST-CF110, eBonTek eGPS 248 Bluetooth
Delorme Blue Logger GPS
Gatox BT-3000
Globalsat GlobalSat BC-307, GlobalSat BT-318, GlobalSat SDIO GPS BT 338
GO Pass Bluetooth
Haicom CF, HI-302CF, HI-303CF/MMF, Multi Mode Foldable
Holux GR 236 BLUETOOTH Slim
InfoRAD GPS
Kirrio BT 306, BT 308
Lidl MYGUIDE Navigator 6500 XL/ MYGUIDE Navigator 6500 XL TMC Edition
Leadtek LR 9537, 9534 (for new version, the older version has a MC Plug socket)
MDPNA MDPNA 150 (MM95242, Micromaxx, Lidl, Plus, Cybercom), MD PNA 200 (= DigiWalker 136), PDA Medion 40600, MD 95900, Mio 136 (MDPNA 150 - Abarten:95023, 95058, 95069, 95084, 95085, 95119, 95145, 95157, 95161, 95164, 95165)
MEDION MD 95000, Medion MDPNA 150 (Micromax), MD PNA 200 (= DigiWalker 136), MD95084, MD 95023, MD95900, MD 95085, Plus MD PPC 150 (Micromaxx), Medion MD95308, diverse Medion MDPNA: 150/ 175/ 200/ 200S/ 220/ 220T/ 240/ 240T/ 250/ 250T, MD 95119
Mitac Mio 168, Mio 268, Mio 136
Navman ICN 510, ICN 520, ICN570 Navman PiN Pocket PC, Navman PiN 300/ 320 Pocket PC
Navigon Bluetooth KIT m. MMCX , Navigon PNA
Navilock Compact Flash (BC-307), Bluetooth GPS (BT-308)
Nemrix GPS GPS-BT77
Orion NV-355
PRETEC Compact GPS-LP
Penny Navigation PNA BM 6300
Plus Micromaxx MDPPC150 Micromaxx
RN GPS Empfnger 600
Transonic 4000 PNA, PNA3002
TFAC BT-30 Bluetooth GPS
Typhoon My Guide 3500/ My Guide 3500 XL
Xaiox BT 15xxx, Wonde X, NavOne 2.0
Yakumo DeltaX, Delta 300 GPS, Alpha GPS


Specifications:

  • Low power consumption: 6 to 11 mA (max)
  • Magnetic mount (magnet can be removed)
  • Ultra High signal gain: 28 dB to 55 dB Gain   (if you need a repeater to boost the GPS signal, then buy this by clicking on this icon )
  • Power Protection Circuit
  • Power Input Sensor: Reverse polarity short circuit shutdown
  • Over-Current Sensor: Thermal over-current shutdown
  • Low noise: noise figure less than 1.8dB at f0
  • Output Impedance: 50 ohms
  • Waterproof
  • Weight: 71gram
  • Power Input: 2.5V DC to 12V DC input
  • Super strong polycarbonate radome
  • Physical dimensions: 1.5?(W) x 1.76?(L) x .5?(H)
  • Over 10 feet long double shielded coax cable .
  • antennas manufactured under toughest UL-certified materials at ISO 9000/9001/9002 certified factories.
  • Made of strong polycarbonate housing with die-cast steel base plate.



If you prefer a straight plug, then click on this icon:
