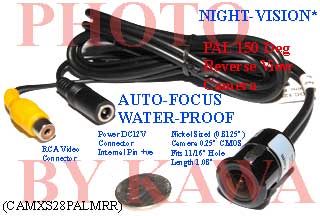

Picture 1. 1.7mm Rear View
Video
COLOR
AUTO-FOCUS
WATERPROOF Camera with 150 degree (CC) viewing angle (please make sure
you read our article on "Myth of 150 degree
view" below) .
|
Offered
here is an EXTRA SMALL (nickel size) ONE (1) PIECE
 NEW EXCELLENT PROFESSIONAL QUALITY Brand New
COLOR
Inside-Mount
Wide View Angle Reverse Rear View NightVision* Camera; the lens has
focal length of 1.7mm with 150 degree viewing angle (please make sure you read our article on "Myth of 150 degree
view"
below). This camera also come with AUTO-FOCUS capability and is WATERPROOF. It can also handle extreme weather
conditions (-22F - 185F).
This camera has
LUX rating of 0.5. At night, it will automatically switch to
night-vision mode without the need of ghostly infra red lights, thus
making the camera very stealthy. And with your tail lights, this
camera will display almost anything within short distance of its sight.
We
also sell exact size drill bits for this camera here...  |
|
Click these icons if you need the cable
accessories
Note: We design
the camera to adapt to constantly changing voltage levels (within
normal range +/- 10%) produced by vehicles' battery and alternator.
However, during start up, some vehicles have very high momentary
voltage which may cause overload and damage to the camera. To avoid
such situation, we advice you to seek professional vehicle audio/video
equipment installers.
|
| Specification: |
|
| Number of Pixels |
720 X 576 (PAL)
for our USA customer, as long as you have a multi system
monitor
 , you can take advantage of the 150degree
provided by this PAL camera. |
| TV System |
PAL |
| Sync System |
Internal |
| Image Sensor /
Resolution: |
OV7910 1/4in CMOS |
| Minimum Illumination |
0.5 LUX - Night Vision* aided with Reverse light |
| S/N Ratio: |
More than 48dB |
| Scan Frequency |
60Hz |
| Power Source: |
DC
12V/110mA (Tolerance: +/- 10%) |
| Power consumption |
50mA Max 110mA |
| Lens: |
1.7mm |
| View Angle: |
150 degree CC or 120 degree SS - see "Myth of 150 degree
view" below |
| Dimension: |
approximately 27.5mm L x 17.5mm Dia (Front
Plate Dia is 20.6mm or 0.8125in) |
| Picture Delay |
Full Motion Real Time Color Video without delay |
| view |
Displays a reversed camera image on the monitor
to duplicate the normal view seen in a rear-view mirror |
| Water proof |
Yes |
| Operating Temperature |
-22F - 185F (-30C to 85C) / RH 95% Max |
| Storage Temperature |
-22F - 185F (-30C to 85C) / RH 95% Max |
| Casing |
Hard Metal Casing |
| Video Output |
1.0V Peak to Peak |
| Shutter |
Dual electronic rolling shutter (DERS) |
| Advanced Image
Processing |
Auto exposure, AWB, ABR, auto flicker
reduction, auto color saturation, auto defect identification and
correction capabilities built into camera circuit |
| Mount |
Mounted Inside will fit into most vehicle key
holes - no other installation needed |
|
Q&A:
NightVision* Question from customer:
this camera does not
come with Infrared LED light, so how can it see objects in the dark
Answer: The sensor is hyper sensitive and need
only the reverse light to pickup and display objects when you put your
vehicle in reverse gear.
|
|
Myth of 150 degree view
Viewing
angle can refer to either of these angles shown in the diagram below.
 |
 |
| 1. Side to Side Viewing Angle (Let's call it
SS Angle) |
2. Corner to Corner Viewing Angle (Let's call
it CC Angle) |
For
1.7mm lens, the CC angle is approximately 150 degree, but the SS angle
is approximately 120 degree.
|
|
