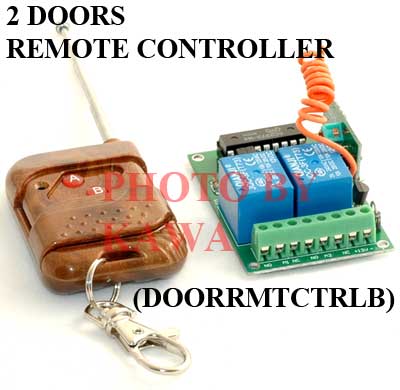

Picture 1: What you see above is what you
get. Manual is included which is not shown in the photo above.
Offered here is
(20) new good quality
Access Control Circuit Board. This board can control two separate
electrical doors or devices. Button A on remote controls Door A, and
Button B controls Door B.
Package comes with
Manual (not shown
in picture above)
Size of electrical board: 40mm x 58mm
Electrical capacity: maximum
permitted current coming from your garage door (see picture 2 above)
|max 10A at 125VAC
|max 7A at 240VAC
|max 10A at 28VDC
If you own an electrical garage
door or gate, and if you tend to lose the expensive remote controller which your
manufacturer charges you, then this is a more economical answer to your
frustration. All you need to do is locate where the door switch is
(usually attach to a wall in you garage), and connect the two wires from the
switch to the board shown in picture 1 above,
apply a DC12V to the board, and you are all
set to open and close your door using the remote controller. If you lose
the remote controller or if you want to give one controller to each of your
family member, you can always buy replacements from us by clicking on this icon:
or this item that has power supply attached to it
wide range of applications
1. Garage door
2. Electrical door.
3. Automobile door
4. most doors that are electrically
controlled. With this device, you can also add remote
control function into those old dummy electrical door that lacks one.
How does this unit function?
Basically, when you press and hold the button on the remote controller, the
circuit board will close or open a circuit for as long as you press onto the
What if my neighbor use a similar
controller? Will he be able to open my garage?
There are more than 6561 combinations
which you can program into the remote controller, therefore, it is highly
unlikely your neighbor will know which combination you are using.
Changing the combination is a very
simple task. All you need is a a soldering iron and a screw driver, which
is not included in this package (and which we do not sell).
