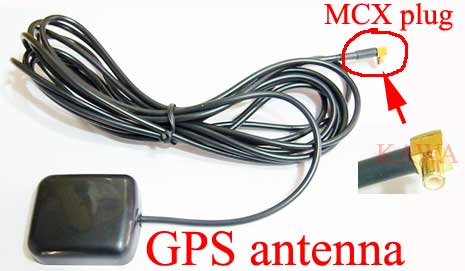

Offered here is 20 PIECES new aftermarket Remote Amplified Antenna for All GPS with MCX Antenna Connector.
It is compatible with:
Garmin GPS units: eMap, iQue 3200, iQue 3600, Quest, 12CX, 12MAP, 12XL, 15, 15L/15H, 25 Series, 40, 76 GPSMAP 60C, 60CS, 76, 76C, 76CS, 76S, 96C, 175, 195 StreetPilot 2610, 2620, 2650, 2660
It also works flawlessly with any other GPS receivers with MCX antenna connector, for example:
Navman iCN 610, iCN 620, iCN 630, iCN 635, iCN 650, 3000, 3300, 3400, 3450, 4100 , 4400, 4410, 4420, 4460, 4470
Holux GM-100, GM-101, GR-230, GM-250, GM-251, GM-270CF
Billionton CF GPS, Emtac Bluetooth GPS, Emtac BTGPS II Trine, Lowrance iFinder H20,
Whistler Galileo GPS, Motorola Encore GPS, Belkin Bluetooth GPS, GlobalSat PCMCIA cf card
Specifications:
- Low power consumption: 6 to 11 mA (max)
- Magnetic mount (magnet can be removed)
- High signal gain: 28 dB Gain
- Power Protection Circuit
- Power Input Sensor: Reverse polarity short circuit shutdown
- Over-Current Sensor: Thermal over-current shutdown
- Low noise: noise figure less than 1.8dB at f0
- Output Impedance: 50 ohms
- Waterproof
- Weight: 71gram
- Power Input: 2.5V DC to 12V DC input
- Super strong polycarbonate radome
- Right angle MCX connector for easy maneuvering
- Physical dimensions: 1.5"(W) x 1.76"(L) x .5"(H)
- Over 10 feet long double shielded coax cable
- Comparable to Garmin GA 27C low profile remote automobile antenna (Garmin # 010-10052-05)
|
