1X RFIDRDRV2 FTP 26bit Wiegand Door Access Control RFID Card Reader

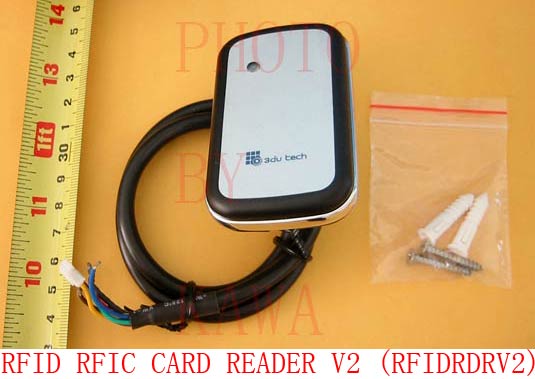

Picture 1:  What you see above is what you get.

Dimension of reader: 76mm*45mm*15mm (3 inch * 1.8inch * 0.6inch)

Package comes with

1. RFID Card Reader

2. Cables

3. Screws

PRODUCT DESCRIPTION

Offered here is a ONE (1) new good quality RFID Access Controller.

This unit has the following advantages:

1. High performance.

2. Anti-interference capability / High stability

3. FTP support 26 bit wiegand

4. Read RFID card (sold separately)

This unit must be connected to a console before it can function.  If you want to buy the console (which is sold separately), then click on this icon: .


TECHNICAL SPECIFICATION
Operating frequency:  125KHz

Adjustment Mode: ASK

Card: EM & RFID

Distance: 65mm

Respond Time: <0.1sec

Output format: 26bit Wiegand

Operating Voltage: DC5 to 16V

Current Draw: 20-50mA

Storage temperature: -25celcius to +85celcius

Working temperature: -20celcius to +70 celcius

Working humidity: 20%-90%

Dimension: 76mm*45mm*15mm
