RFID
+
Fingerprint
Authentication
|

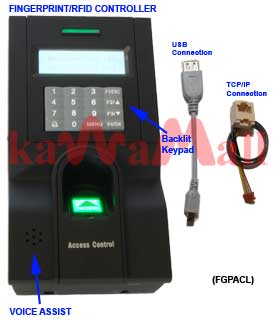

Offered here is ONE (1) NEW
TWO-IN-ONE DOOR ACCESS CONTROLLER that grant/reject user access via
RFID card/token or FINGERPRINT.
|
WEB
Interface
|
You can connect to the device
via your internet browser. Web interface allows you to manage users,
hardware settings, search records and do various other functions. Pls
click the image below to see a larger picture of sample screen shots of
the WEB interface...

|
US
Email
Support
|
Support tech is based in the
USA, we make every effort to respond within 1 business day, some issues
are more complex and may need more than 1 business day to resolve.
|
Network/USB
Connection
|
CONTROLLER is managed via
NETWORK or USB connection. Simply plug the unit to your network hub or
PC's USB port.
|
USB
Drive
Compatible
|
Allows you to download
attendance data from the controller to your USB drive.
|
Built-in
MP3
Decoder
|
Controller can be setup to play
MP3 tunes from your MP3 file at fixed time period. Playback sound will
be sent to the on board speaker or you can connect your stereo system
to the output of the controller to achieve higher quality sound.
|
Time
Attendance
Tracking
|
Software will be provided to
manage and track time attendance with the following functionalities:
Multi Controller Support
|
Each software is capable
of managing multiple units of controller. Each controller must be
registered with the software.
|
Raw Data Export
|
Lets you export
time/attendance data to your payroll system such as Quicken or
PeachTree via CSV file format.
|
Define Shifts
|
Create shifts to define
normal working time. Work time outside of shifts may be treated as
Overtime.
|
Holiday Support
|
Define holidays and assign
names such as "CHRISTMAS", "NEW YEAR". Work time that falls within
holidays may be treated as Overtime.
|
Departmental Support
|
Classify employees by
departments. This is different from GROUP. GROUP controls access while
departments only provide easy organization of data when you export it
to your Payroll System.
|
Automated Data Download
|
Automatic download of log
data from all registered controllers. Each controller can store
up to50,000 transactions. Once downloaded, data will be removed from
controller and stored in a database by the software.
|
Controller Data
Backup/Restore
|
Backs up all data from a
registered controller so that if the controller failed, data can be
restored to a replacement unit.
|
Door Access Report
|
Report that shows
date/time when user attempted to access a registered controller.
|
Time Card Report
|
Report that shows
employee's time card, employee must clock in/out by scanning their
finger or RFID card.
|
Firmware Upgrade
|
Firmware can be upgraded
via PC and USB or TCP/IP connection.
|
|
User/Admin
Security
Levels
|
Supports up to 4 different
levels of security:
USER |
Identity must be verified
to gain access to a facility or record attendance. |
ENROLLER |
Authorized to add/remove
USER(s). |
MANAGER |
Time/Attendance settings +
ENROLLER + USER priviledges. |
SUPERVISOR |
Admin who can make all
changes. |
|
Group
Security
|
Simplify adiministration by
assigning users to groups so that security settings can be applied to a
few groups rather than hundreds of unique individual users.
|
Access
Time
Limit
|
Creates time zones that defines
intervals of time that users can access a facility. These time zones
can then be assigned to groups or individual users to limit the time
when they can access the facility. For example, you can create a group
called CUSTODIAN and assign time zone of 9 PM - 5 AM. When you add a
new custodian to the group, he/she will automatically be limited to
access the facility between 9 PM to 5PM.
|
Tamper
Switch
Alarm
|
Alarm will sound if tamper
switch is triggered by unwanted removal of controller unit.
|
Voice
Prompt
|
Voice prompts help
adiministrators to add/delete users on the controller. It also guides
user through the authentication process. For example, if it failes to
authenticate your fingerprint, it will say "Please Try Again".
|
Power
Saving
Option
|
Power saving options such as
auto shutdown, auto sleep and idle time can be adjusted.
|
Specifications
|
Max # of Users: 1,500
Fingerprint Validation Speed: Under 2 second once scan is completed
Max # of Temporary Transaction Storage: 50,000
Authentication Method: Fingerprint, RFID or pass code
Comm Port: TCP/IP (RJ45 network cable) or USB
LCD Resolution: 122x32
KeyPad: Back lit
Operating Temp: 0 - 40 Celcius
Operating Humidity: 20-80%
#Registered Fingerprints/user: 10 Fingerprints
Max # of Time Zones: 50
Max # of Groups: 5
Time Attendance: Software Driven
Power Input: DC12V 0.4 A
False Rejection Rate (FRR): <= 1%
False Acceptance Rate (FAR): <= 0.0001%
Dimensions: 8"x4"x2"
Software OS: Windows XP, Vista 32 bit.
|
