Offered here is a NEW EXCELLENT PROFESSIONAL QUALITY Brand New COLOR Inside-Mount Wide View Angle Reverse Rear View Camera; the lens has focal length of 2.8mm with 120 degree viewing angle. Comes with reverse camera viewing system.
What you see in picture 1 is what you get.

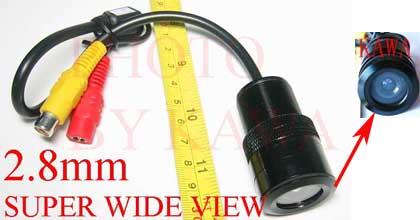

Picture 2 . measuring tape is in mm (not inch). Notice the rubber washer and the first angle controller ring. It comes with 5 movable rings. The first movable ring on the left is a rubber washer to protect rain from coming into your car. The second and third rings are the angle controller rings. The fourth and fifth rings are the fixing ring. Camera comes with RCA video output socket (yellow), and 12V power input socket (black)
Picture 4: The yellow female RCA plug connects to any TV/monitor that has an RCA input signal line. Every TV that will connect to a VCR/DVD player is guaranteed to work with our camera. the red power cable (plug) should be connected to a 12 V power supply, which is the voltage all standard van/car battery provides. If you don’t have the connecting head that fits our plug, you can cut the red plug from our camera and connect the exposed line directly to your car battery’s power supply, which is what I did on my car.
| Specification: |
|
| Number of Pixels |
NTSC: 512 (H) * 492(V) |
| Sync System |
Internal |
| Image Sensor / Resolution: |
more than 380 TV lines |
| Minimum Illumination |
1.0 lux at F2.0 |
| S/N Ratio: |
More than 48dB |
| Scan Frequency |
60Hz |
| Power Source: |
DC 12V/110mA (Tolerance: +/- 10%) |
| Lens: |
2.8mm / F2.0 |
| View Angle: |
120° (120 degree) |
| Screw Thread diameter |
- (Dia) 24mm
- (Dia) 15/16 inch
|
| Dimension: |
3 3/8" L x 1 1/16" Dia |
| Picture Delay? |
Full Motion Real Time Color Video without delay |
| view |
Displays a reversed camera image on the monitor to duplicate the normal view seen in a rear-view mirror |
| Water resistant |
Yes |
| Operating Temperature |
14°F - 115°F (-10°C to 46°C) / RH 95% Max |
| Storage Temperature |
-22°F - 140°F (-30°C to 60°C) / RH 95% Max |
| TV System |
NTSC |
| Casing |
Hard Metal Casing |
| Mount |
Mounted Inside will fit into most vehicle key holes - no other installation needed |
Note: We design the camera to adapt to constantly changing voltage levels (within normal range +/- 10%) produced by vehicles' battery and alternator. However, during start up, some vehicles have very high momentary voltage which may cause overload and damage to the camera. To avoid such situation, we advice you to seek professional vehicle audio/video equipment installers.
