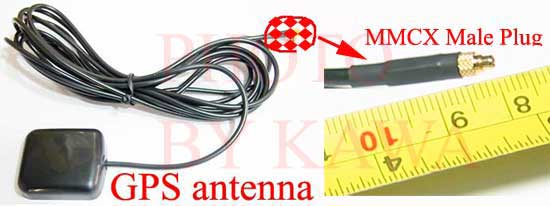

Offered here is 100 PIECES new aftermarket Remote Amplified Antenna for All GPS with MMCX MALE JACK connector for easy maneuvering .
Compatible with the following GPS units:
Navman iCN 510, Navman PiN, Navman PiN 100, Navman PiN 300
GlobalSat BC-307, BT-308, BT-318, SDIO
Haicom Compact Flash, Haicom Multi Mode Foldable (all models)
Dell Axim X5, Dell Axim X30, Leadtek 9537, Delorme Blue Logger, MITAC MIO 168
It will also work with any GPS receivers with MMCX antenna connector.
Specifications:
- Low power consumption: 6 to 11 mA (max)
- Magnetic mount (magnet can be removed)
- High signal gain: 28 dB Gain (if you need a repeater to boost the GPS signal, then buy this by clicking on this icon )
- Power Protection Circuit
- Power Input Sensor: Reverse polarity short circuit shutdown
- Over-Current Sensor: Thermal over-current shutdown
- Low noise: noise figure less than 1.8dB at f0
- Output Impedance: 50 ohms
- Waterproof
- Weight: 71gram
- Power Input: 2.5V DC to 12V DC input
- Super strong polycarbonate radome
- Physical dimensions: 1.5"(W) x 1.76"(L) x .5"(H)
- Over 10 feet long double shielded coax cable
|
