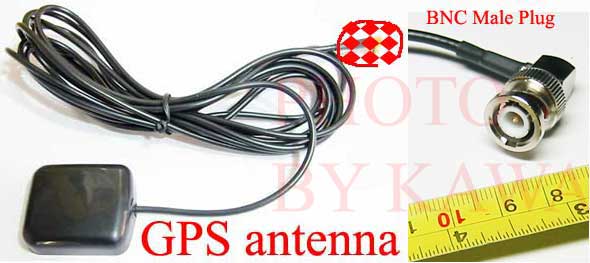

Offered here is 20 PIECES new aftermarket Remote Amplified Antenna for All GPS with BNC MALE JACK connector for easy maneuvering .
Compatible with the following Garmin GPS units:
Garmin StreetPilot GPS, StreetPilot GPS ColorMap, StreetPilot III GPS, StreetPilot III Deluxe, GPS II, GPS II+, GPS III, GPS III+, GPS III Pilot, GPS V, GPS 15, GPS 15L, GPS 15H, GPS 45, GPS 45XL, GPS 48, GPS 50, GPS 65, GPS 75, GPS 89, GPS 90, GPS 92, GPS 95XL, GPS 100, GPS 100STD, GPS 120, GPS 120XL, GPS 125 Sounder, GPS 128, GPSMAP 130, GPS 135, GPSMAP 135 Sounder, GPSMAP 152, GPSMAP 162, GPSMAP 168 Sounder, GPSCOM 170, GPSMAP 172, GPSMAP 172C, GPSMAP 176, GPSMAP 176C, GPSMAP 178, GPSMAP 178C Sounder, GPSMAP 180, GPSMAP 182, GPSMAP 182C, GPSMAP 185 Sounder, GPSMAP 188 Sounder, GPSMAP 188C Sounder, GPSMAP 196, GPSMAP 200, GPS 205, GPSMAP 210, GPSMAP 215, GPSMAP 220, GPSMAP 225, GPSMAP 230, GPSMAP 232, GPSMAP 235 Sounder, GPSMAP 238 Sounder, GPSMAP 276C, GPSMAP 295, GPSMAP 296, NavTalk Pilot
It will also work with any other GPS receivers with BNC antenna connector.
Specifications:
- Low power consumption: 6 to 11 mA (max)
- Magnetic mount (magnet can be removed)
- High signal gain: 28 dB Gain (if you need a repeater to boost the GPS signal, then buy this
 by clicking on this icon  )
- Power Protection Circuit
- Power Input Sensor: Reverse polarity short circuit shutdown
- Over-Current Sensor: Thermal over-current shutdown
- Low noise: noise figure less than 1.8dB at f0
- Output Impedance: 50 ohms
- Waterproof
- Weight: 71gram
- Power Input: 2.5V DC to 12V DC input
- Super strong polycarbonate radome
- Physical dimensions: 1.5”(W) x 1.76”(L) x .5”(H)
- Over 10 feet long double shielded coax cable
|
