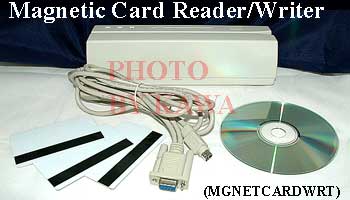

Picture 1:
What you see above is what you get.
Offered here is FIVE
(5) sets of new good quality
Dual track 1 & 2 writer with RS232 interface.

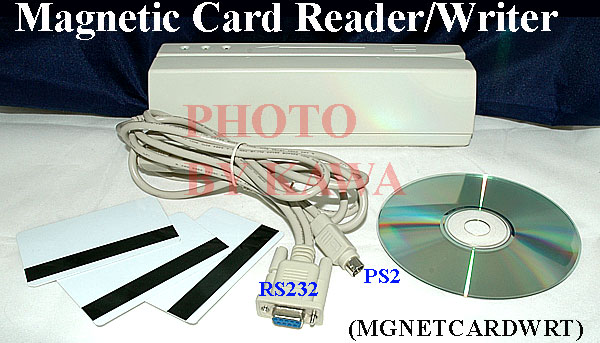

You shall receive:
A. Dual track writer
B. Connection cables with
C. Three pieces of empty magnetic cards
D. Software program
E. Manual in the CD.
Usage
Connect this Magnetic card reader /writer to a POS terminal or a PC to read /
write the dual track (1&2) data on the magnetic card or bank passbook.
Ideal for use in banks, securities houses, payment centers, POS and more!
Specifications:
- Heavy duty magnetic head for heavy
load work, can handle a minimum of 600,000 read/write operation or swipes
- LED Light and Sound notification
- Read and write Hi-Lo magnetic card support
- support IBM / ISO record format
- Low power consumption = Low operational cost
- High performance & High reliability
- Card pulling speed : 10 to 120cm/s
- Support standard : ISO7810 to 7811-1、2、3、4、5/IBM
- recording density : track 1 (210 BPI) / track 2 (75 BPI)
- recording character : track 1 (79 Alphanumeric characters) / track 2 (37
Numeric characters)
- Power: 5V/DC (Power from PS2
Keyboard port)
- external power not
needed
- current : 280mA
- PC Interface: RS232 communication
with PC's com port
- Operation temperature ：0C to +40C
- Humidity：10% to 85%RH
Track#1 and 2 format:
STX / Track 1 Data / Track 2 Data /
ETX / BCC
whereby:
STX ? Start String
Track 1 data format : Track 1 Data (Max. 79 characters)
Track 2 data format : Track 2 Data (Max. 37 characters)
ETX ? End String
BCC ? Block Check Character
