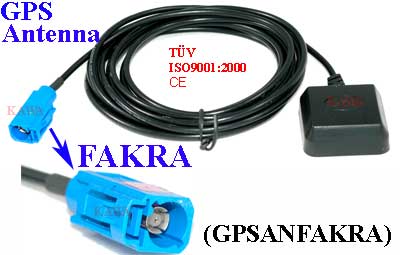

Offered here is FIVE (5)  new aftermarket Remote Amplified Antenna for All GPS with FAKRA
straightangle connector for easy maneuvering .
This is an active antenna, not a passive type
It is compatible with:
Audi: RNS-E 16:9 in A3, A4, A6
Blaupunkt: Travel Pilot EX
Garmin: GTM 10 Traffic Receiver
Mercedes: Command APS in Mercedes W211 E-Class and APS 50 in CLK W209
Volkswagen: MFD2, RNS2 in Golf 5, Golf Plus, Jetta, Touran, Touareg, T5, T5 Multivan, Passat
Specifications:
- Low power consumption: 6 to 11 mA (max)
- Magnetic mount (magnet can be removed)
- Ultra High signal gain: 28 dB to 55 dB Gain (if you need a repeater to boost the GPS signal, then buy this
 by clicking on this icon  )
- Power Protection Circuit
- Frequency: 1575.42MHz
- Power Input Sensor: Reverse polarity short circuit shutdown
- Over-Current Sensor: Thermal over-current shutdown
- Low noise: noise figure less than 1.8dB at f0
- Output Impedance: 50 ohms
- Waterproof
- Weight: 71gram
- Power Input: 2.5V DC to 12V DC input
- Super strong polycarbonate radome
- Physical dimensions: 35mm(W) x 38mm(L) x 12mm(H)
- Over 10 feet long double shielded coax cable
- antennas manufactured under toughest UL-certified materials at ISO 9001:2000 certified factories. Also meets CE and T?V certification
- Made of strong polycarbonate housing with die-cast steel base plate.
|
