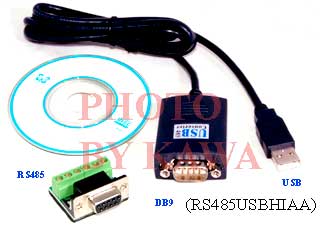

Picture 1: What you see
in picture 1 above is what you get including software driver.
|
|
Picture 2: The high end
cable uses Prolific 2303 chip, which is a high end super stable
USB-RS232 chip from Prolific. The cheaper cables uses unstable, cheap,
low quality chips that were made in China while this high end cable's
Prolific chip comes from Taiwan and is designed to be very stable.
|
|
Picture 3: This DB9 to
RS485/RS422 adapter lets you connect your RS485 or RS422 device easily
without having the need to solder your device cables to this adapter.
|
DESCRIPTION
Offered
here is TWENTY (20)
piece of BRAND NEW HI-N USB to RS485 or RS422 converter cable with Prolific PL-2303HX
Chip. This cable also works with a wide variety of Operating System platforms.
The software driver supports Windows and MAC OS.
This
converter :
-
USB end connects to your computer.
-
RS485/422 end (See Picture 3) connects to your
RS485/422 device.
-
Works with a variety of devices including:
Modems, Smart card readers, Terminals, POS (point of sale) devices,
Industrial control devices, RS232 peripheral upgrades.
-
Cable length from tip to tip is 50 inches
long.
-
USB 1.1 compliant.
-
No external power needed ? powered by USB port
-
Software driver supports OS - Windows
98/98SE/ME/2000/XP and MAC 8/9/OSX/Leopard.
INSTRUCTION
(works on all computer with Microsoft Windows
98/98SE/ME/2000/XP operating system and
with USB port):
-
Insert the provided software driver CD into
your computer CD tray.
-
Plug the converter cable into your computer's
USB port.
-
When the "Found New Hardware Wizard" dialog
appears, select "Install from a list or specific location (Advanced) then
click Next.
-
Select "Search for the best diver in these
locations", then make sure the "Search removable media (floppy, CD-ROM...)"
is checked. Then click Next.
-
Wait for hardware wizard to find the driver.
-
When the "Hardware Installation" dialog
appears, click on "Continue Anyway" to finalize the installation.
-
Click on "Finish" after the wizard has
completed finding the new cable.
Package Includes:
1. USB-RS485/422 converter cable with adapter.
2. Software driver for Windows
98/98SE/ME/2000/XP and MAC 8/9/OSX/Leopard.
|
Specifications: |
|
|
Communication port |
USB - RS485/422 |
|
Data transfer
rates: |
300 Baud to 230,400
Baud |
|
Compatibility |
Windows
98/98SE/ME/2000/XP and MAC 8/9/OSX/Leopard |
|
Length |
50 inches |
|
USB Spec |
1.1 compliant |
|
