Offered here is 20 PIECES  new aftermarket Remote Amplified Antenna for All GPS with MMCX MALE JACK 90degree angled plug connector for easy maneuvering .

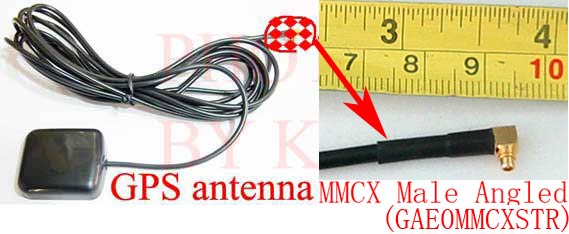

Picture 1: What you see above is what you get.
If you prefer a straight plug, then click on this icon:
Our MMCX antenna
is compatible with:
Acer N35 Navigations PDA
Acore AG-600 GPS
Airis PDA 509
ALDI Medion MD 95000, MD95900 = MDPPC 150
AKTRONIX BT
Blue Media Pocket PC 255, Blue Media Navigation System 6300/ Penny Navigation PNA BM 6300,
BT Empfnger BT-R500, BR-R700, CF Empfnger ST-K500, ST-BTS 110, STBT110, ST-CF110, eBonTek eGPS 248 Bluetooth
Delorme Blue Logger GPS
Gatox BT-3000
Globalsat GlobalSat BC-307, GlobalSat BT-318, GlobalSat SDIO GPS BT 338
GO Pass Bluetooth
Haicom CF, HI-302CF, HI-303CF/MMF, Multi Mode Foldable
Holux GR 236 BLUETOOTH Slim
InfoRAD GPS
Kirrio BT 306, BT 308
Lidl MYGUIDE Navigator 6500 XL/ MYGUIDE Navigator 6500 XL TMC Edition
Leadtek LR 9537, 9534 (for new version, the older version has a MC Plug socket)
MDPNA MDPNA 150 (MM95242, Micromaxx, Lidl, Plus, Cybercom), MD PNA 200 (= DigiWalker 136), PDA Medion 40600, MD 95900, Mio 136 (MDPNA 150 - Abarten:95023, 95058, 95069, 95084, 95085, 95119, 95145, 95157, 95161, 95164, 95165)
MEDION MD 95000, Medion MDPNA 150 (Micromax), MD PNA 200 (= DigiWalker 136), MD95084, MD 95023, MD95900, MD 95085, Plus MD PPC 150 (Micromaxx), Medion MD95308, diverse Medion MDPNA: 150/ 175/ 200/ 200S/ 220/ 220T/ 240/ 240T/ 250/ 250T, MD 95119
Mitac Mio 168, Mio 268, Mio 136
Navman ICN 510, ICN 520, ICN570 Navman PiN Pocket PC, Navman PiN 300/ 320 Pocket PC
Navigon Bluetooth KIT m. MMCX , Navigon PNA
Navilock Compact Flash (BC-307), Bluetooth GPS (BT-308)
Nemrix GPS GPS-BT77
Orion NV-355
PRETEC Compact GPS-LP
Penny Navigation PNA BM 6300
Plus Micromaxx MDPPC150 Micromaxx
RN GPS Empfnger 600
Transonic 4000 PNA, PNA3002
TFAC BT-30 Bluetooth GPS
Typhoon My Guide 3500/ My Guide 3500 XL
Xaiox BT 15xxx, Wonde X, NavOne 2.0
Yakumo DeltaX, Delta 300 GPS, Alpha GPS
Specifications:
- Low power consumption: 6 to 11 mA (max)
- Magnetic mount (magnet can be removed)
- Ultra High signal gain: 28 dB to 55 dB Gain (if you need a repeater to boost the GPS signal, then buy this
 by clicking on this icon  )
- Power Protection Circuit
- Power Input Sensor: Reverse polarity short circuit shutdown
- Over-Current Sensor: Thermal over-current shutdown
- Low noise: noise figure less than 1.8dB at f0
- Output Impedance: 50 ohms
- Waterproof
- Weight: 71gram
- Power Input: 2.5V DC to 12V DC input
- Super strong polycarbonate radome
- Physical dimensions: 1.5?(W) x 1.76?(L) x .5?(H)
- Over 10 feet long double shielded coax cable .
- antennas manufactured under toughest UL-certified materials at ISO 9000/9001/9002 certified factories.
- Made of strong polycarbonate housing with die-cast steel base plate.
