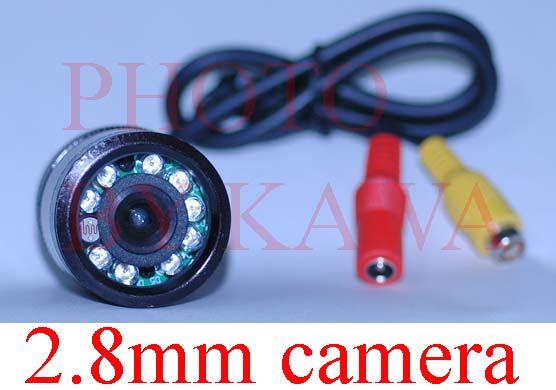

Picture 1. 2.8mm Rear View Video COLOR Camera with 90 degree viewing angle
What you see in picture 1 is what you get
(Click on this icon if you prefer a 6.0mm camera with 53 degree viewing angle or this   with 15 meter night vision  ). Camera comes with RCA video output socket (yellow), and 12V power input socket (red)
|
|
Picture 2 . Notice the rubber washer and the first angle controller ring. It comes with 5 movable rings. The first movable ring on the left is a rubber washer to protect rain from coming into your car. The second and third rings are the angle controller rings. The fourth and fifth rings are the fixing ring. |
Picture 4: The yellow female RCA plug connects to any TV/monitor that has an RCA input signal line. Every TV that will connect to a VCR/DVD player is guaranteed to work with our camera. the red power cable (plug) should be connected to a 12 V power supply, which is the voltage all standard van/car battery provides. If you don?t have the connecting head that fits our plug, you can cut the red plug from our camera and connect the exposed line directly to your car battery?s power supply, which is what I did on my car.
Click these icons if you need the cable accessories
Note: We design the camera to adapt to constantly changing voltage levels (within normal range +/- 10%) produced by vehicles' battery and alternator. However, during start up, some vehicles have very high momentary voltage which may cause overload and damage to the camera. To avoid such situation, we advice you to seek professional vehicle audio/video equipment installers. |
