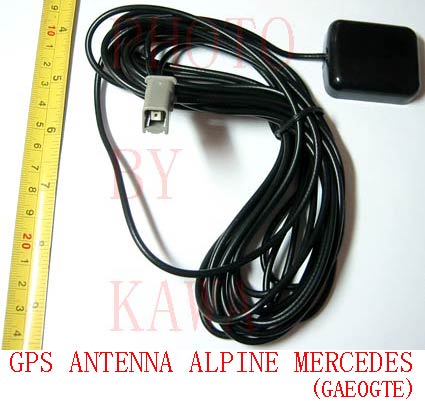

Offered here is ONE (1)  new aftermarket Remote Amplified Antenna
This antenna comes with connector that fits the following automobile's GPS:
-
Alpine
-
Chrysler, Dodge, Jeep RB1 CD DVD RDS GPS RADIO UNIT
-
Clarion
-
Ford 9000 VNR Navi
-
Grundig
-
Magnetic
-
Marelli
-
Mercedes Command Series [ A 203, 208, 210, 230, 220, 820, 463 ]
-
Panasonic
-
Pioneer Navigation [ AVIC 505 ]
Specifications:
- Low power consumption: 6 to 11 mA (max)
- Magnetic mount (magnet can be removed)
- Ultra High signal gain: 28 dB to 55 dB Gain (if you need a repeater to boost the GPS signal, then buy this
 by clicking on this icon  )
- Power Protection Circuit
- Power Input Sensor: Reverse polarity short circuit shutdown
- Over-Current Sensor: Thermal over-current shutdown
- Low noise: noise figure less than 1.8dB at f0
- Output Impedance: 50 ohms
- Waterproof
- Weight: 71gram
- Power Input: 2.5V DC to 12V DC input
- Super strong polycarbonate radome
- Physical dimensions: 1.5?(W) x 1.76?(L) x .5?(H)
- Over 10 feet long double shielded coax cable
- antennas manufactured under toughest UL-certified materials at ISO 9000/9001/9002 certified factories.
- Made of strong polycarbonate housing with die-cast steel base plate.
- Comparable to Garmin GA 27C low profile remote automobile antenna (Garmin # 010-10052-05)
|
|
|
|
|
|
|
