10X STRIKE38S Door NC/NO Access Control Electric Strike + Monitoring

10X STRIKE38S Door NC/NO Access Control Electric Strike + Monitoring
click to see larger image
Name: 10X STRIKE38S Door NC/NO Access Control Electric Strike + Monitoring
Your Price:
$440.00


Add product to your shopping cart

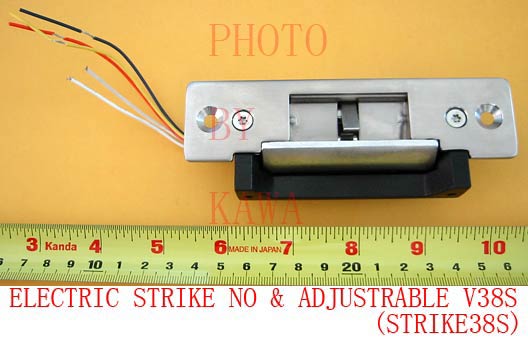

Picture 1:  What you see above is what you get, no more no less.   Measuring tape is for illustration purpose only.




Offered here is  10 pieces  pieces of BRAND NEW door electric strike with both NO (Normally Opened) and NC (Normally Closed) function.  You can manually switch the electric strike from NO to NC. Here is how:

Please refer to the photo above.

Remove the two screws as shown by the two red arrows.  After that, pull or push on the black cable as shown in the yellow circle.    If you push the cable in, you get NC; pull and you get NO. After that, replace the screw to lock the position onto either NC or NO as you desired.

This strike also has a monitoring function.  This function will send a signal to your access control unit (such as this or ) to inform the unit about the status of the strike, whether it is in "close" or "open" position.  Please note that your access control unit must have this monitoring and TCP/IP networking capability to utilize this function.  Our access control module (click this icon  or to buy it) does have this monitoring function.

Cable connection instruction:

1. White cables: If you set the strike to NO, then connect the white cables to NO and ground of your intelligent power supply.  If you set the strike to NC,  then connect the white cables to NC and ground of your intelligent power supply.

2. Yellow cable connects to COM or ground socket inside your access controller such as or

3a. If you set the electric strike to NO, then the orange cable is useless, and connect the dark blue cable to the signal port of your access controller.  In the case of this controller, you connect to "SEN" port ("SEN" means sensor).  In the case of this controller, you connect to "MC1" port on JP1 (Jumper 1) .

3b. If you set the electric strike to NC, then the dark blue cable is useless, and connect the orange cable to the signal port of your access controller.  In the case of this controller, you connect to "SEN" port ("SEN" means sensor).  In the case of this controller, you connect to "MC1" port on JP1 (Jumper 1) .

Hence, when the strike is ready to use, you are able to monitor the "close" or "open" status of your door from your computer (assuming your access controller has networking function and is connected to a network).

Face plate: 124L x 32W x 33H (mm) (Plate thickness is 2mm)

Material: Stainless Steel

Voltage: DC 12V

Current: 250mA

Ideal for Wooden and metal door
